Crawl Space Encapsulation & Waterproofing

Our team at Perma-Seal can help you fix your damp or wet crawl space. We offer professional crawl space encapsulation and waterproofing solutions in Chicago and NW Indiana.

Help protect your family and your home from excess moisture, toxic mold, unwanted pests, soil gases and harmful airborne allergens. With a Perma-Seal Crawl Space Encapsulation System, you can turn your dark, dingy crawl space into a bright, healthy, usable space. Encapsulating your crawl space is very different from waterproofing a basement, it involves the use of a heavy duty liner as well as a specially designed drainage system and sump pump to remove the water from your home.

Some of the features and benefits of encapsulating your crawl space are:

  • An encapsulated crawl space will add additional bright, clean usable storage space to your home.
  • Added insulation can help reduce your heating and cooling costs.
  • The wall and floor liners act as a barrier to insects, gases, odors and moisture, enhancing air quality throughout your entire living space and creating a healthier home.
  • You can increase the resale value of your home. Water problems must be disclosed when you sell the house, which could turn away potential buyers.
  • If any future problems occur, our Encapsulation System can be cut and re-seamed with minimal disruption.

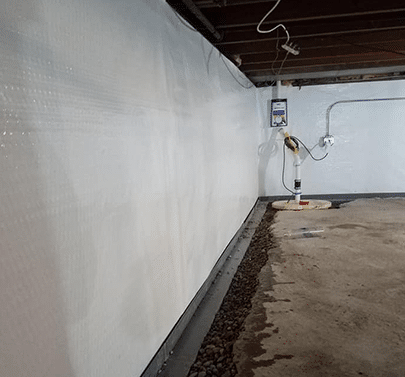

Crawl Space Encapsulation and Sump Pump Installation

Crawl Space Wall and Floor Liners

After homeowners remove their belongings and a rough grade is established, we place a floor liner over the ground to become the base of the encapsulation system. These liners help disperse soil gases and enhance water drainage below the floor liner. Then, one of our wall liners is completely sealed over the floor and walls to fully encapsulate the crawl space and isolate the area from the outside earth. All of our wall liners are 100% waterproof and will act as a barrier to moisture, gases, insects and odors, and will not support any mold growth. They are designed to direct any wall seepage straight into the drainage system and sump pump, helping keep your crawl space dry.

We use four main types of liners:

Soil Gas Dispersing Drain Fabric

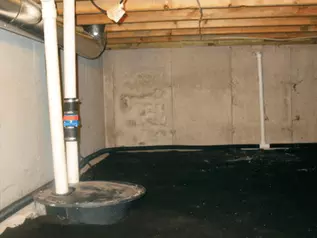

Soil Gas Fabric - Crawl Space Encapsulation Liner
  • 100% Polypropylene fibers that won’t rot or decay
  • Added cushion for the floor to protect liner, hands and knees


TerraBlock - Crawl Space Encapsulation Liner
  • 3/4″ flexible foam with vapor barrier on both sides
  • Adds a R4 insulation value to the floor
  • Much thicker cushion for the floor to protect liner, hands and knees

CleanSpace™ Liner

CleanSpace Liner - Crawl Space Encapsulation Liner
  • 20 mil thick, puncture resistant liner
  • 25 year warranty against punctures and tears
  • Will brighten your crawl space

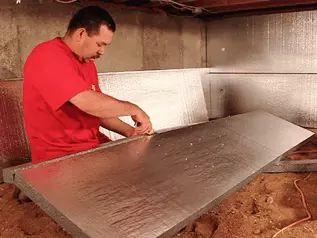

SilverGlo - Crawl Space Encapsulation Liner
  • Added R11 insulation value for exterior walls to reduce your heating and cooling costs
  • Radiant barrier also reflects heat back into your crawl space
  • Can also be installed in the rim joist for added insulation

Additional Crawl Space Waterproofing Solutions

Crawl space encapsulation will usually only solve one of the many problems homeowners have in their crawl spaces. We offer a variety of solutions and designs for Chicago area crawl spaces that can help you tackle these issues. Learn about our ventilation and waterproofing solutions for crawl spaces below.

Water Drainage Systems

You may not yet be experiencing standing water in the crawl space (or perhaps are unaware of it) but our 4” drainage system, in conjunction with a Perma-Seal sump pump and battery backup system, ensures that your crawl space will remain dry.

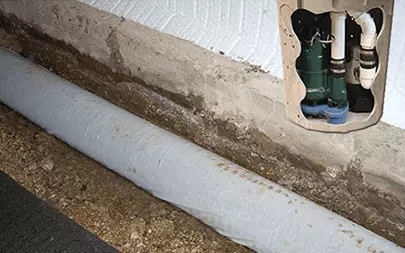

Crawl Space Drain Tile for Encapsulation

Soil Gas & Radon Ventilation Systems

A passive ventilation pipe is installed during the encapsulation process to prevent soil gases from building up pressure under the liner by venting them to the outside. This system never needs maintenance because there are no moving parts.

Crawl Space Soil Ventilation Pipe for Encapsulation

Perma-Foam Rim Joist Spray Insulation

A great way to make your upstairs living space more comfortable and to increase your energy efficiency is to insulate the floor rim joist area in your basement or crawl space. Perma-Seal’s Perma-Foam Insulation can be installed in just one day and is twice as effective as the old fashion fiberglass batt insulation. Perma-Foam will seal off any unwanted drafts, deter insects, and rodents, and is mold and mildew resistant.

Perma-Foam Rim Joist Spray Foam Insulation

Contact Us For Crawl Space Encapsulation and Waterproofing Solutions

If you’d like to schedule a consultation with a member of our team to discuss encapsulating your crawl space, please contact us today.
